How Does a Smartphone Gimbal Work?

Strip away the marketing and a gimbal is a feedback loop with a motor attached. Here's the whole thing in plain English.

It senses movement. Inside the handle sits an IMU — a gyroscope plus an accelerometer — that reports which way the phone is tilting and how fast that's changing. It measures hundreds of times per second.

It decides what was on purpose. This is the part people miss. A gimbal doesn't fight every movement; it cancels the fast, unintended ones — the jitter of your hand, your footfall, a bump. Slow, deliberate movements it follows. That's the difference between a stabilizer and a brick.

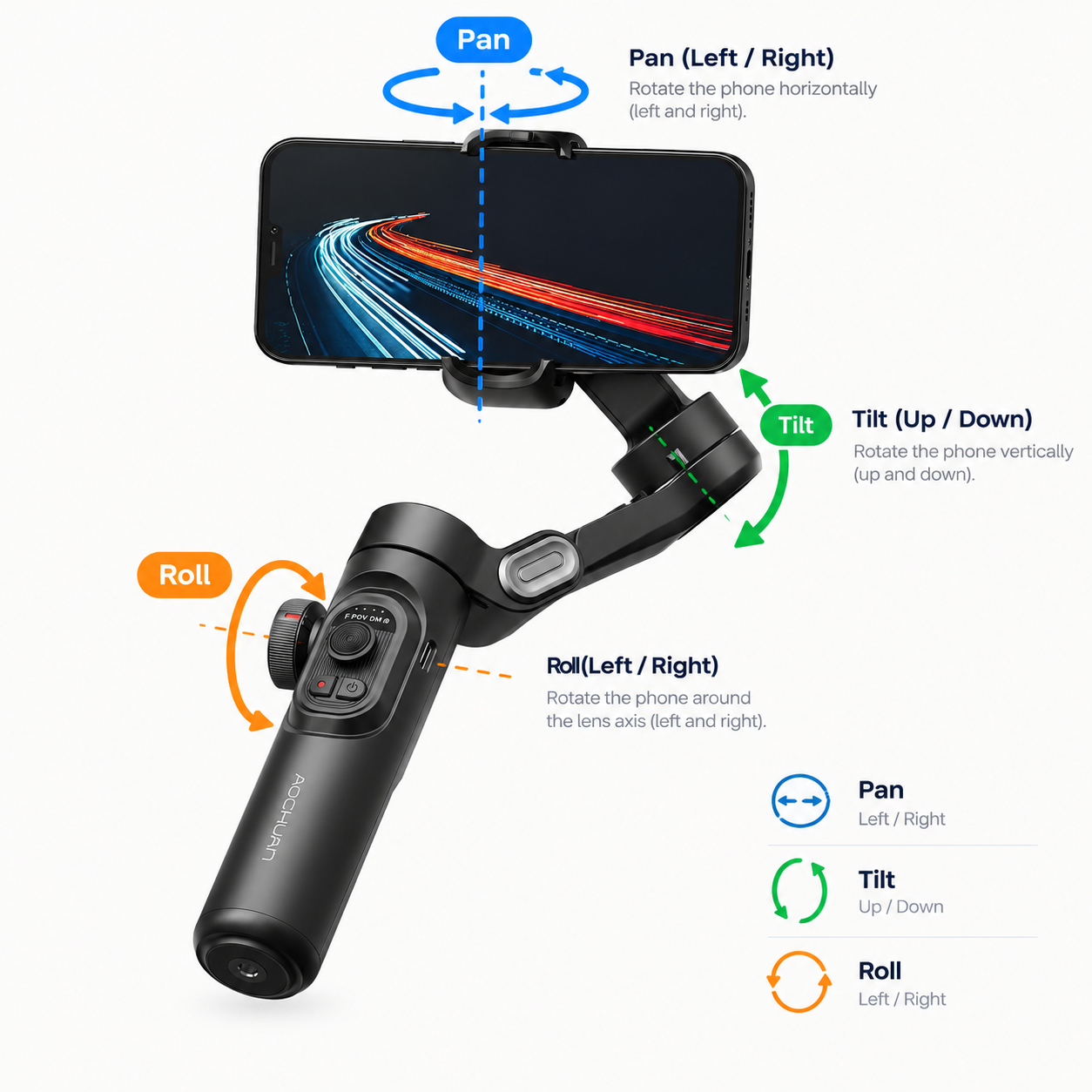

It pushes back. Three brushless motors — one per axis: pan (left/right), tilt (up/down), and roll (horizon level) — rotate the arms to counter exactly the motion the IMU detected. Sensor reads, controller compares, motors correct, over and over, many times per second. The motors never stop working, which is why the battery lasts hours, not days.

Balance matters. Before a gimbal can correct anything, the phone has to sit level in the clamp. If it's badly balanced, the motors spend their energy holding the phone up instead of smoothing your shot — the footage gets twitchy and the battery drains faster. Mount, balance, then power on.

Why it beats built-in stabilization. Your phone's OIS physically shifts a tiny lens element, and EIS crops into the frame and warps the edges. Both work on small, quick shakes, and both give up when the light drops or you're genuinely moving. A gimbal moves the entire camera, so nothing is cropped and nothing is guessed. Your phone records the full frame, steady.

Where the modes come from. Follow, lock, and POV modes are software settings layered on the same hardware — they change which axes are allowed to move. Face tracking is separate: an app or a module recognizes a face in the frame and tells the motors to follow it.

That's the AOCHUAN Smart X3 in one paragraph: three motors, an IMU, and software that turns them into a 3-in-1 tool — gimbal, extendable selfie stick with a 510mm rod, and built-in tripod. Add AI face tracking, gesture control, and a detachable Bluetooth remote with a 10-meter range, and solo shooting stops requiring a second person. It folds to pocket size, handles phones up to 330g, and runs 7.5 hours per charge at $79.99.

Curious what those three motors feel like working? Get the AOCHUAN Smart X3 →
